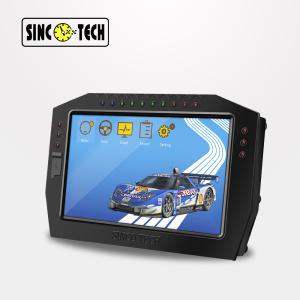

DO909 Digital Car Electric Oil Pressure Gauge 12000rpm With Acceleration Display

Product Categories

Ruian Ispeed Automtoive Electronics Co.,Ltd

Contact Now

DO909 Digital Car Electric Oil Pressure Gauge 12000rpm With Acceleration Display

Name: DO909 Digital Car Electric Oil Pressure Gauge 12000rpm With Acceleration Display
Brand: SINCOTECH
Price: 1 USD

China DO909 Digital Car Electric Oil Pressure Gauge 12000rpm With Acceleration Display wholesale

Brand Name : SINCOTECH

Model Number : DO909

Certification : ISO9001 / CE

Place of Origin : China

MOQ : 1 pcs

Price : negotiation

Payment Terms : , MoneyGram,PAYPAL, T/T

Supply Ability : 1000 pcs per month

Delivery Time : In 7days

Packaging Details : SINCOTECH Color Box

Application : All 12v Vehicles

Working Voltage : 9V-16V DC

Display : LCD liquid crystal display

Water Proof : Yes

Function : Multifunction

Contact Now

DO909 Digital Car Electric Oil Pressure Gauge 12000rpm With Acceleration Display Differential Pressure Gauge

Brand: SINCO TECH

Model: DO909

Screen Size: 7 inch

Display: Digital

R.P.M Bar: 12000MAX

Operating Voltage: 9V-16V

Application: All 12v Vehicle

Main Function Display:

1. RPM

2. Speed

3. Air/Fuel Ratio

4. Oil Pressure

5. Turbo

6. Water Temp

7. Voltage

8. Oil pressure temp

9. EXT.temp

10. Acceleration display

Parameter Range:

Speed: 0-255Km/h OR 0-255MPH

RPM: 0～12000rpm

OIL P. : 0～150PSI OR 0～10BAR

BOOST.P: -15～45PSI OR -1～3BAR

AIR FUEL RATIO: 20～10:1

OIL T. : 0～150℃ OR 0～300℉

WATER T. : 0～150℃ OR 0～300℉

EXT T. : 0～1,300℃ OR 0～2400℉

VOLT: 10～16V

CLOCK: 24H TIME C LOCK

Speed pulse 2,4,6,8 pulse

Free pulse: 1,274～16,562 pulse/km (equal to pulse of 2～26)

Cylinder number 1,2,3,4,5,6,8(loop)

Main Function Display:	System Setup Menu:	Alarm Setup:
1. RPM	1. Set Language (CN/EN)	1. TACHO
2. Speed(MPH-KMH)	2. Set Date	2. OIL PRESS
3. Oil Pressure (BAR-PSI)	3. Set Time	3. OIL TEMP
4. Air/Fuel Ratio(%)	4. Set Unit (BAR-PSI ,KM/H-MPH,ºF-ºC)	4. WATER TEMP
5. Turbo (BAR-PSI)	5. Set LED (ON-OFF)	5. AIR FUEL
6. Water Temp (ºF-ºC)	6. Set Backlight	6. EXT.TEMP
7. Voltage (V)	7. Set Alarm (speed limit alarm)	7. TURBO
8. Oil pressure temp (ºF-ºC)	8. Set Speed Calibration
9. EXT.temp(ºF-ºC)	9. Set Cylinder Number (1-9)
10. Acceleration display	10. Clear
11. Racing Mode
12. Data Recording Function

DO909 Digital Car Electric Oil Pressure Gauge 12000rpm With Acceleration Display

Liquid crystal display (lcd) This is a kind of instrument display method that we are more familiar with. In LCDs, the principle of polarized light is used to display numbers and characters on nematic liquid crystals. The lcd needs only a small current to work, but it must have a backlight to see its display in the dark. LCDs are generally only used in digital electronic instruments.
